Relay location 68 Plus 2 SE

[Marcus_2]

Hi - I have recently bought a 68 Plus 2 that has a few issues.

The wiring has been “modified” sometime in the past, and various electrical equipment is not working correctly - horns, indicators, panel lights etc - and so I am looking to repair/replace as required.

I have a workshop manual which is nicely detailed, but it doesn’t really show the specific location of, for example, the horn relay.

Has anyone got a diagram of where the relays/fuses are located please?

TIA

[jono]

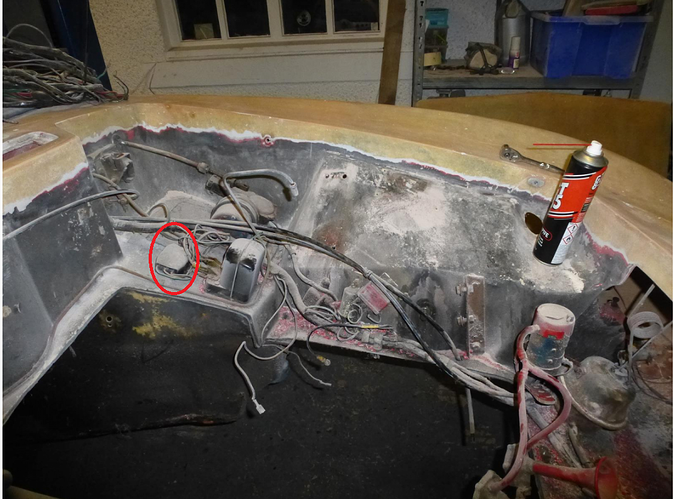

'68 Plus 2 - hope this helps

[andywatts]

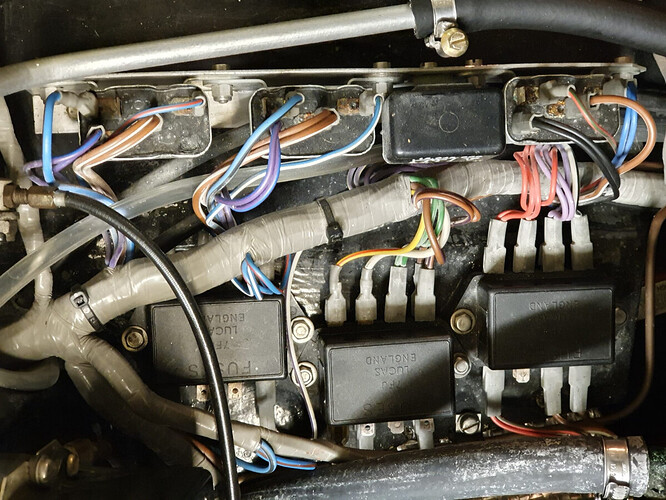

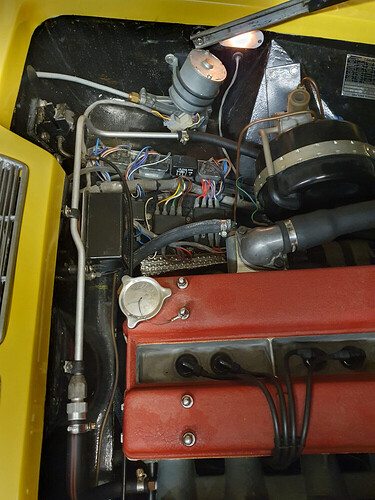

Fuse position on a 69 +2 S is as per the photos attached. Pre the ‘S’ model was slightly different, but the horn relay position was the same.

[The_Veg]

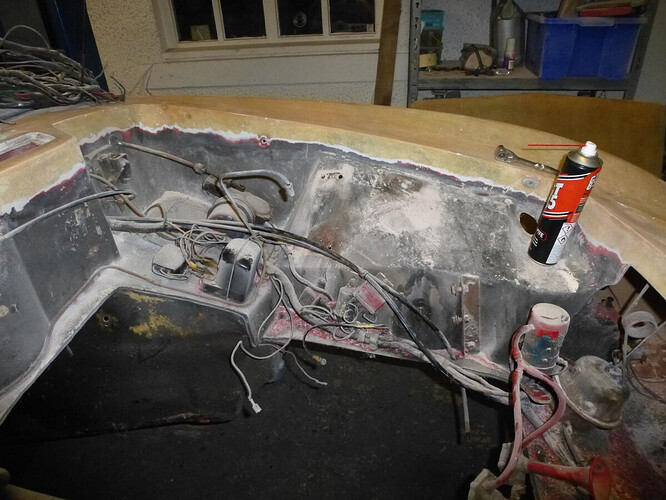

This should be the fuse box. Pull the plastic cover off.

[ncm]

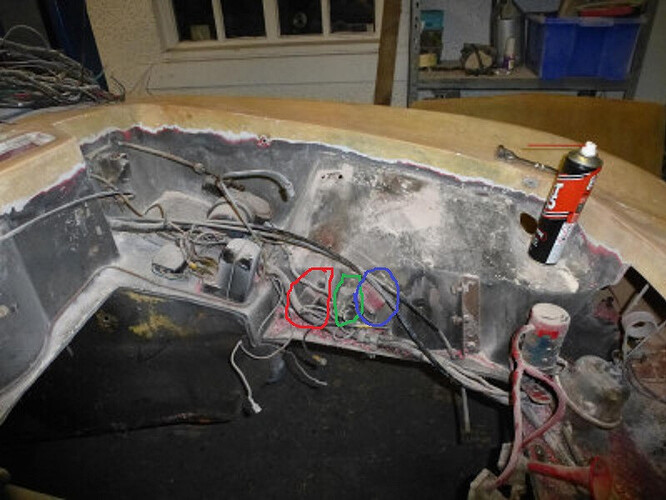

Relays are as follows:-
Red:- Headlamp flasher relay
Green:- Headlamp flasher
Blue:- Horn relay

Brian.

[Marcus_2]

Ah, that’s great - thank you all very much.
